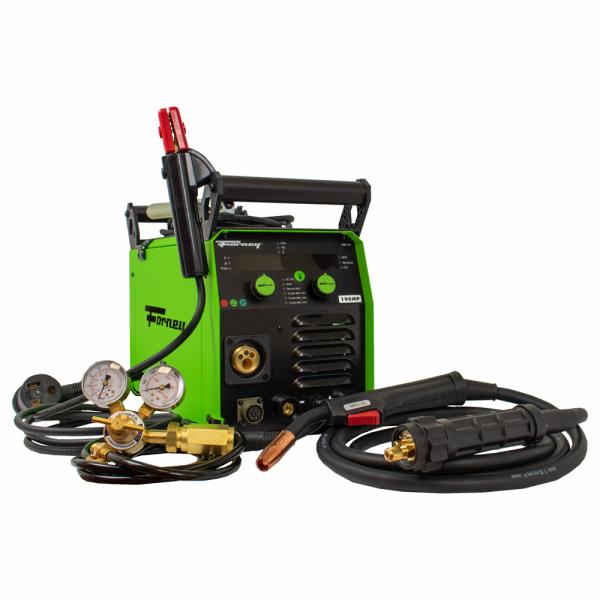

Forney 190 MP MIG Stick TIG Welder

The Forney 190 MP is a powerful, 4-in-1 multi-process machine (MIG/Stick/Flux-Core/DC TIG). It’s lightweight, extremely easy to use, and a single-phase inverter machine. It features the latest despooler technology (patent pending) which automatically sets optimal spool tension to take the headaches out of setting changes! Applications include do-it-yourself (DIY), maintenance and repair, metal fabrication, hobbyist and metal artist.

PROCESSES

• MIG Welding (GMAW)
• Stick Welding (SMAW)
• Flux-Cored Wire Welding (FCAW)
• DC TIG Welding (GTAW) with Lift Arc

FOR USE ON

• Mild Steel | Sheet Metal
• Stainless Steel
• Copper
• Nickel
• Aluminum (requires a spool gun sold separately)

SPECIFICATIONS

• Lift Arc TIG capable. Requires TIG Torch (Forney ITEM# 85659).
• Not foot pedal capable
• Output Power: 120A/200A
• Input Voltage: 120V/240V
• This machine has a 7-pin Amphenol™ style connection for connecting a spool gun accessory
• Electrode Diameter: Up to 5/32”
• Wire Diameter: Up to .035”
• Plate Thickness: Up to 3/8”
• Amperage Range (MIG): 120V: 30A-120A | 240V: 30A-200A
• Amperage Range (Stick): 120V: 10A-80A | 240V: 10A-190A
• Amperage Range (TIG): 120V: 10A-85A | 240V: 10A-190A
• Certification: CSA listed
• Phase: Single
• Frequency: 50/60Hz
• Warranty: 3-year (power source), 1-year (torch)

FEATURES

• Dual-Voltage: 120V and 240V power options provides the operator flexibility for where their machine can be used.
• Built Tough: Constructed with an all-metal case, built tough to take on the day to day.
• TruSet MIG: Automatically sets the right parameters for your weld setup.
• Spool Gun Capable: MIG weld aluminum with a spool gun (sold separately).
• Set and Forget Despooler (Patent Pending): Automatically sets optimal spool tension.
• CSA Certified: Reduces environmental impact and ensures quality and safety.

INCLUDES

• Forney 190 Multi-Process (MP) Stick/TIG Welder
• 6ft power cable
• 8ft stick electrode holder
• 8ft ground cable and clamp
• 120V-240V adapter cord
• 6ft gas hose
• 10ft MIG gun (Euro Connect)
• Gas regulator
• Spare .030” and .035” tips

UNIT DIMENSIONS (OUT OF THE BOX)

• Unit Weight: 31 lbs. (14 Kg)
• Unit Dimensions: 20.75” (527 mm) x 8.63” (220 mm) x 12.88” (328 mm)

RECOMMENDED FORNEY ACCESSORIES AND CONSUMABLES

• ITEM# 60170 - Contact Tip (Tweco® Style 11-23), 4-Pack
• ITEM# 60171 - Contact Tip (Tweco® Style 11-30), 4-Pack
• ITEM# 60172 - Contact Tip (Tweco® Style 11-35), 4-Pack
• ITEM# 85339 - Gas Diffuser (Tweco® Style 35-50)
• ITEM# 85336 - Nozzle (Tweco® Style 21-50)
• ITEM# 85337 - Nozzle (Tweco® Style 21-62)
• ITEM# 84094 - MIG Torch (Replacement)
• ITEM# 85659 - Air Cooled 150A 17FV Series (Flex and Valve) TIG Torch, 12.5ft with Dinse Adapter
• ITEM# 85650 - Spool Gun
• ITEM# 85669 - Electrode Holder (25 Dinse) (Replacement)
• ITEM# 85667 - Ground Cable Assembly, 150A (Replacement)
