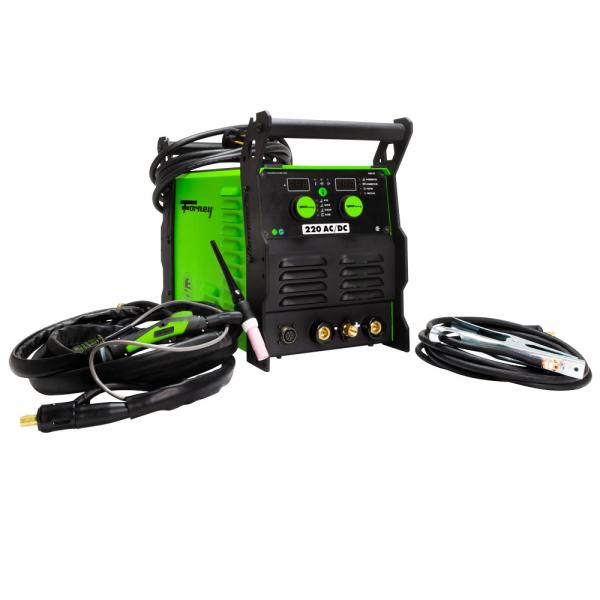

Forney 220 AC/DC TIG Welder Amptrol Package

The Forney 220 AC/DC TIG welder is an ideal TIG machine for a wide variety of users. Perfect for beginners to professionals, this powerful machine features dual-voltage with 120V/240V input power. The ability to weld up to 1/2” and 220 AMPs of welding power makes machine a great tool for professionals. The intuitive controls allow for quick set-up and simple operation. This machine features amperage control settings as low as 5 AMPs, features pulse capabilities and allows users to weld with low frequency. What’s more, the ability to use AC and DC power makes welding anything from mild steel to aluminum a breeze!

Product Specifications:

Processes:

• SMAW (Stick)
• GTAW- DC (TIG)
• GTAW- AC (TIG)

Output Power:

TIG

• 120V: 25% @ 120 AMP (AC)
• 120V: 25% @ 130 AMP (DC)
• 240V: 35% @ 200 AMP

Stick

• 120V: 40% @ 85 AMP
• 240V: 35% @ 170 AMP

Input Power:

• 120V @ 24.8 AMP
• 240V@ 32 AMP

Welding Capacity:

• Up to 1/2 inch

Wire/Electrode Diameter:

• Stick: 1/16" (1.6 mm) to 5/32" (4.0 mm)
• TIG: .040" (1.02 mm) to 1/8" (3.2 mm)

Unit Weight of Welder Out of Display Box:

• 54 lbs. (24.54 kg)

Unit Dimensions of Welder Out of Display Box:

• H: 15.5" (393.7 mm)
• L: 23.25" (263.53 mm)
• W: 10.375" (590.55 mm)

For Use On:

• Solid Steel
• Cast Iron/Steel
• Stainless Steel
• Aluminum

Features:

• Stable Arc at 5 AMPs
• Pulse Welding
• High Frequency Starts
• Ability to Turn Off High Frequency
• TIG Torch/Hand Amptrol Combination
• Dual-Voltage
• Digital Gauges

Included Accessories:

• Amptrol TIG Torch
• 15’ (4.57 m) Ground Clamp with Cable
• 15’ (4.57 m) Electrode Holder with Cable
• 15’ (4.57 m) Input Power Cable
• Flowmeter with Hose

Recommended Accessories and Consumables:

• ITEM# 85655 - TIG Foot Pedal, 25' (7.6M) 7 Pin
