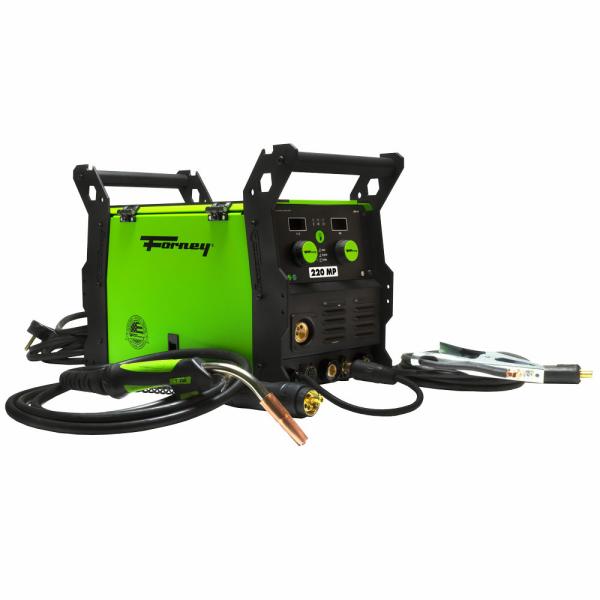

Forney 220 Multi-Process (MP) Welder



The Forney 220 MP welder brings multi-process welding to the next level. Ideal for anything from do-it-yourself projects to light industrial work, this powerful welding machine features dual-voltage with 120V/240V input power. With a high welding capacity of 1/2” and 220 AMPs of welding power, this unit is ideal for use on steel, stainless steel, cast iron and aluminum (with spool gun). This machine is rugged and technologically advanced with a digital display, all-metal drive system and 3-year warranty.



Product Specifications:

Processes:



GMAW (MIG)

FCAW (Flux-Cored)

SMAW (Stick)

GTAW- DC (TIG)

Output Power:



MIG:



120V: 35% @ 90 AMP

240V: 40% @ 200 AMP

Stick:



120V: 32% @ 80 AMP

240V: 40% @ 200 AMP

TIG:



120V: 35% @ 110 AMP

240V: 40% @ 200 AMP

Input Power:



120V @ 21.4 AMP

240V @ 38 AMP

Welding Capacity:



Up to 1/2 inch

Wire/Electrode Diameters:



.024” (0.6 mm) to .035” (0.9 mm)

Unit Weight of Welder Out of Display Box:



51 lbs. (23.18 kg)

Unit Dimensions of Welder Out of Display Box:



H: 15.5” (393.7 mm)

L: 23.25” (263.53 mm)

W: 10.375” (590.55 mm)

For Use On:



Solid Steel

Stainless Steel

Cast Iron/Steel

Aluminum with spool gun

Features:

All-Metal Drive System

Multi-Process

Auto Torch Detect

Digital Displays

Dual-Voltage

Included Accessories:

12.5’ (3.81 m) 200 AMP PRO-Grip MIG Gun

15’ (4.57 m) Ground Clamp with Cable

15’ (4.57 m) Electrode Holder with Cable

15’ (4.57 m) Input Power Cable

Flowgauge with Hose

Extra Contact Tips

Recommended Accessories and Consumables:

ITEM# 84095 - PRO Grip MIG Gun, 12', 200 AMP with Euro (Replacement Gun)

ITEM# 85658 - 150 AMP 17FV TIG Torch 12.5'

ITEM# 85655 - TIG Foot Pedal, 25' (7.6M) 7 Pin

ITEM# 85660 - 150 AMP 17F Amptrol TIG Torch 12.5'
