Forney 45 P PRO Plasma Cutter

This machine is eligible for a GREENBACK™ rebate! 45 AMP professional grade plasma cutter. Features 120V/240V dual-voltage input power and a 7/8” thick cutting capacity. Ideal for cutting mild steel, aluminum, stainless steel and more!

Forney Industries’ powerful, professional grade dual-voltage plasma cutter can clean cut 7/8" (22.23 mm) at 10 in/min and sever cut 1-1/8" (28.58 mm) at 5 in/min. With a 15ft (4.57 m) power cable, 25ft (7.62 m) lead and lightweight design, Forney's 45 P has one of the largest work envelopes in the industry. Forney's 45 P features an all-metal construction, quick-lock torch connection, temperature-controlled fan, and reliable inverter technology.

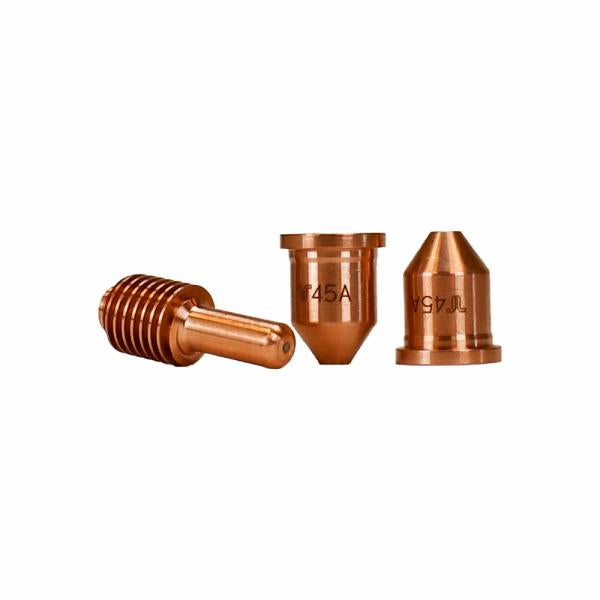

This machine can be operated using Hypertherm® compatible consumables. Forney's 45 P comes with the plasma cutting power source, Forney® Ignite™ Plasma Torch, ground cable with ground clamp, 240V - 120V adapter cord, and replacement consumables.

SPECIFICATIONS

• Input Power: 120 VAC / 240 VAC, 1-Ph, 50-60 Hz
• Input Current: 120V: 14A / 240V: 14A
• Output Current Range: 120V: 15-20 AMPs / 240V: 15-45 AMPs
• Power Supply Type: Inverter
• Duty Cycle: 120V: 60% @ 20A / 240V: 40% @ 45A, 60% @ 38A
• Cut Rating - Mild Steel: 7/8" (22.23 mm) @ 10 in/min
• Sever - Mild Steel: 1-1/8" (28.58 mm) @ 5 in/min
• Input Power Cable Length: 15ft (4.57 m)
• Torch Length: 25ft (7.62 m)
• Ground Cable Length: 15ft (4.57 m)
• Recommended Gas Inlet Pressure: 100 - 130 PSI (6.9 - 9.0 bar)
• Recommended Gas Supply Flow Rate: 6.6CFM (188 in/min)
• Minimum Gas Supply Flow Rate: 5.8 CFM (165in/min)
• Gas Supply Lines Minimum Inner Diameter: 3/8" (9.53 mm)
• Certification: CSA listed
• Warranty: 3-year (power source), 1-year (torch)

UNIT DIMENSIONS (OUT OF THE BOX)

• Unit Weight: 31 Lbs. (14.06 Kg)
• Dimensions: 18" (457 mm) x 7-3/8" (187 mm) x 12-3/8" (314 mm)

FEATURES

• Dual-Voltage: Provides the operator flexibility for where their machine can be used.
• Built Tough: Constructed with an all-metal case, built tough to take on the day to day.
• CSA Certified: Reduces environmental impact and ensures quality and safety.

RECOMMENDED FORNEY ACCESSORIES AND CONSUMABLES

• ITEM# 85640 - Forney® Ignite™ Plasma Torch with 25ft Lead for Forney 45 P Plasma Cutter (ITEM# 445)
• ITEM# 85925 - Precision Cut Deflector for Forney® Ignite™ and Compatible with Hypertherm® Duramax® Torches (220931), 30-45 AMPs
• ITEM# 85926 - Plasma Deflector (Unshielded) for Forney® Ignite™ and Compatible with Hypertherm® Duramax® Torches (220955), 45/65/85 AMPs
• ITEM# 85927 - Plasma Electrode (5-Pack), 45-150A, for Forney® Ignite™ and Compatible with Hypertherm® Duramax® Torches (220842x5ft)
• ITEM# 85930 - Precision Cut Plasma Nozzle (5-Pack), 45A, Forney® Ignite™ and Compatible with Hypertherm® Duramax® Torches (220930)
• ITEM# 85931 - Plasma Nozzle (5-Pack), 45A, for Forney® Ignite™ and Compatible with Hypertherm® Duramax® Torches (220941-UR)
• ITEM# 85936 - Plasma Retaining Cap, 45/65/85A, for Forney® Ignite™ and Compatible with Hypertherm® Duramax® Torches (220854-UR)
• ITEM# 85939 - Plasma Shield Cap, 45/65/85A, Hand Cutting, for Forney® Ignite™ and Compatible with Hypertherm® Duramax® Torches (220818-UR)
• ITEM# 85942 - Precision Cut Plasma Swirl Ring, 45A, for Forney® Ignite™ and Compatible with Hypertherm® Duramax® Torches (220947-UR)
• ITEM# 85943 - Plasma Swirl Ring, 45-85A, for Forney® Ignite™ and Compatible with Hypertherm® Duramax® Torches (220857-UR)

Forney Industries green color is a federally registered trademark and cannot be reproduced unless authorized by Forney Industries.
